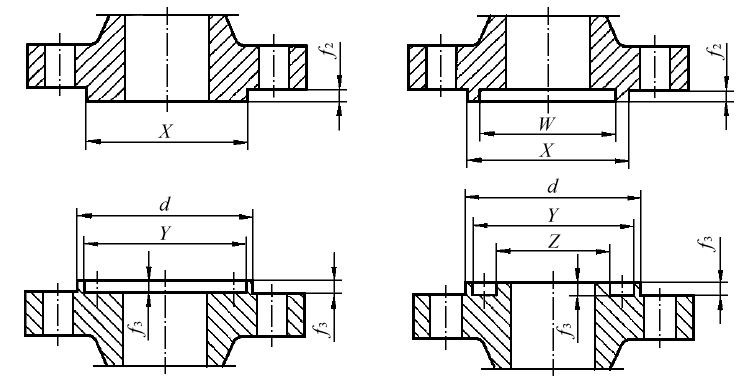

凹面(FM)/凸面(M)、榫面(T)/槽面(G)夹套法兰的密封面尺寸(摘自HG/T 20615—2009) |
|||||||
|
mm |
|||||||
|
公称尺寸 (内管×外管) DN |
Class300 |
||||||
|
d |
W |
X |
Y |
Z |
f2 |
f3 |
|
|
15×40 |
84 |
54.0 |
73.0 |
74.6 |
52.4 |
7 |
5 |
|
20×40 |
84 |
54.0 |
73.0 |
74.6 |
52.4 |
||
|
25×50 |
103 |
73.0 |
92.1 |
93.7 |
71.4 |
||
|
40×80 |
138 |
108.0 |
127.0 |
128.6 |
106.4 |
||
|
50×80 |
138 |
108.0 |
127.0 |
128.6 |
106.4 |
||
|
80×125 |
197 |
160.3 |
185.7 |
187.3 |
158.8 |
||
|
100×150 |
227 |
190.5 |
215.9 |
217.5 |
188.9 |
||
|
150×200 |
281 |
238.1 |
269.9 |
271.5 |
236.5 |
||
|
200×250 |
335 |
285.8 |
323.8 |
325.4 |
284.2 |
||
|
250×300 |
392 |
342.9 |
381.0 |
382.6 |
341.3 |
||
|
300×400 |
481 |
425.4 |
469.9 |
471.5 |
423.9 |
||
|
350×450 |
544 |
489.0 |
533.4 |
535.0 |
487.4 |
||
